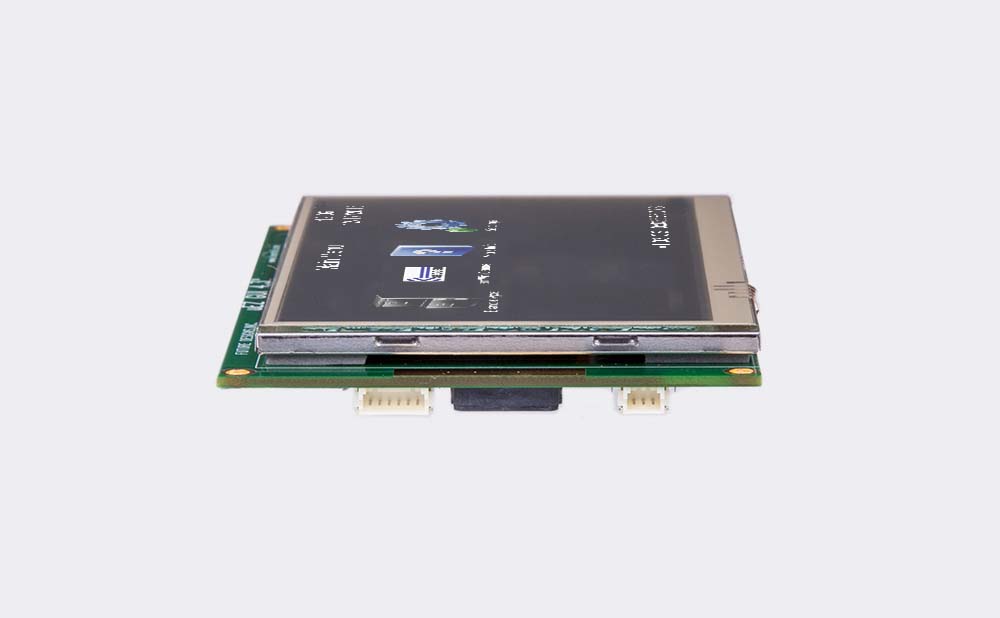

A photo of UEZGUI-1788-43WQR from the side

4.3” Resistive Touchscreen LCD GUI (Production Module) – UEZGUI-1788-43WQR-BA

Part #: µEZGUI-1788-43WQR-BA (Production Module)
Request a volume price quote from FDI: Request Quote Form
For distribution pricing, click on the Purchase Info tab.
Status: In production
Production guaranteed: Until 2025
Warranty: 1 Year (Extended available)
Associated Part #: UEZGUI-1788-43WQR (Development Kit)

Microcontroller based intelligent HMI GUI
4.3” WQVGA 480 x 272 4 Wire Resistive Touchscreen LCD Panel
µEZ® / FreeRTOS Rapid Software Development Platform
ARM Cortex-M3 120MHz MCU with 512KB Internal Flash
8MB SDRAM, 8MB NOR Flash
Expansion: UART, I²C, SPI, ADC, GPIO, USB Host/Device, RMII

>> See the brochure

SKU: µEZGUI-1788-43WQR-BA Categories: Featured, Resistive Touchscreens, Touch Screen GUI Production Modules, μEZ GUI, μEZ GUI 4.3 Resistive

Overview

The 4.3” Resistive Touchscreen LCD GUI (Production Module) – UEZGUI-1788-43WQR-BA provides a cost effective resistive touch option in the standalone microcontroller-based µEZ® GUI product family. Featuring a beautiful resistive touch TFT LCD panel, it is a high value “off-the-shelf” Graphical User Interface (GUI) or Human Machine Interface (HMI) designed for easy integration into a variety of end customer applications. The miniature, self-contained design is well suited to be embedded directly into your product and FDI offers prepackaged versions for stand-alone use.

FDI also offers low cost customization services for customer specific hardware, software or packaging applications at volumes of 500 units or more

Quick Start Documentation

Quick Start Guide

μEZGUI Software

μEZ® / FreeRTOS Rapid Development Platform
MicroSD card appears as a USB Flash Drive to the PC
Rowley CrossWorks Compiler and Tool Suite
Segger J-Link Lite JTAG for programming and debug

Specifications

Microcontroller	NXP LPC1788
• Speed	120MHz
• Internal SRAM	96KB
• Internal Flash	512KB
External Flash	8MB
External Flash Type	NOR
External Flash Optional	up to 32MB
SDRAM Standard	8MB
128Mbit Serial PCM Memory, optional	Not available
Non-volatile data storage standard	Internal 4K EEPROM
SD Card Bus interface	SPI @ 15MHz
USB	USB Device Mini-AB for Host or Device Operation
Expansion - primary	70 Fine Pitch I/O Connector for External Expansion:Serial Ports, UART, I²C, SPI, USB Host/DeviceRMII interface for Ethernet 10/100
Expansion - additional	ISP, UART, RTC External battery
Accelerometer	3 Axis
Temperature Sensor	Yes
JTAG	Mini-JTAG Debug Connector
RTC	Internal RTC, Supercap backup
Audio	On-board Speaker
Operating Temperature	-20° to 70° C
Storage Temperature	-30° to 80° C
Power Input	USB Device Mini-AB for power
Input Voltage	+5 Volt DC
Power Consumption	350 mA typ / 500mA max
Overall Size	116.84 (W) x 72.14 (H) x 12.95 (D) mm
Mounting	#6 screws in 4 corners
Weight	100 grams
RoHS Compliant	Yes
Screen Size (diagonal)	4.3 inches
Display Technology	TFT-LCD
Resolution	480 x 272 (WQVGA)
Brightness	300 nits (typ)
Contrast Ratio	500 : 1 (typ)
Aspect Ratio	Wide 30:17
Colors	262K (18 bit)
Pixel Pitch	0.198 (H) x 0.198 (V)
Vertical Viewing Angle	55/80 ° U/D
Horizontal Viewing Angle	80/80 ° L/R
Surface Finish	Anti-glare
Touchscreen Type	4-Wire Resistive
Active Area	95.04 (W) x 53.86 (H) mm
Response Time	22Tr / 8Tf ms (typ)
Backlight	9 LEDs (9S x 1P)
Backlight Life	10K hrs (min)
Backlight Power Consumption	576 mW (typ)
Reverse Scan	U/D, L/R by software
Kit Available?	Yes

Documentation

Current Documentation – Rev 8.0

Title	Type	Format	Date
Quick Start Guide UEZGUI-1788-43WQR	Quick Start Guide	pdf	09/12/2016
Start Here Guide for UEZGUI-1788-43WQR	Start Here Guide	pdf	11/23/2022
Users Manual	User's Manual	pdf	01/19/2016
Interactive Online uEZ GUI API Library (By Doxygen)	Interactive Online uEZ GUI API Library (By Doxygen)	Online	03/29/2016
Brochure	Brochure	pdf	12/23/2015
Latest PCN	Document	pdf	12/01/2015
Latest Hardware Rev	Document	pdf	05/12/2015
Converting Images from 24-bit to 16-bit for uEZ GUI	Document	pdf	06/07/2013
Software QuickStart Guide	Quick Start Guide	pdf	09/15/2014
Software User's Guide	User's Guide	pdf	07/25/2023
2D Model for UEZGUI-1788-43WQR	Mechanical Models	pdf	08/27/2015
3D & EASM Model Files (By Request Only)	Mechanical Models	zip	09/22/2016
JTAG Programming uEZ GUI and SYG Products	Engineering Guide	pdf	05/29/2024
Converting a PowerPoint Slideshow for use on uEZ GUI Products	Application Note	zip	10/19/2016
Expansion Board Design Guide	Application Note	pdf	11/03/2016
How to Create Videos for uEZ GUI	Engineering Guide	zip	02/22/2016

Historical Documentation

Title	Type	Format	Date
uEZGUI-1788-43WQR 7.3 PCN	Document	pdf	05/12/2015
uEZGUI-1788-43WQR 7.2 PCN	Document	pdf	05/23/2014
uEZGUI-1788-43WQR 7.1 PCN	Document	pdf	10/30/2013
uEZGUI-1788-43WQR 7.0 PCN	Document	pdf	08/23/2013
uEZGUI-1788-43WQR 6.0 PCN	Document	pdf	03/29/2013
uEZGUI-1788-43WQR 6.2 PCN	Document	pdf	02/22/2013
uEZGUI-1788-43WQR 5.0 PCN	Document	pdf	12/04/2012
uEZGUI-1788-43WQR 6.1 PCN	Document	pdf	10/30/2012
uEZGUI-1788-43WQR 5.1 PCN	Document	pdf	08/20/2012

Software

Title	Type	Format	Date
µEZ Source Files	Executable	exe	5/27/15
How to make an SD Card for a uEZ Demo Kit	Instruction Document	.pdf	03/28/2024
SDCard-Pt1-Common	SD card files (pt 1) Common	.zip	03/28/2024
SDCard-Pt2-43WQR.zip	SD card files (pt 2) 43WQR	.zip	03/28/2024

FDI Software

μEZ® Source Files
µEZ® is an open source, embedded middleware platform providing underlying RTOS and processor abstraction features enhancing portability of application code to multiple ARM and Renesas platforms with high reusability.

FDI Bootloader
The µEZ+ Bootloader is perfect for upgrading your firmware in the field through mediums such as an SD card, USB flash drive, or even over a serial interface such as Ethernet or USB.

μEZGUI Realtime GUI Rotation
This document outlines the procedure for setting up a real-time GUI rotation demo based on readings from the accelerometer on a uEZGUI

μEZGUI Realtime GUI Rotation Video

Recommended 3rd Party Software

Rowley CrossWorks Compiler and Tool Suite
Crossworks compiler for ARM.

FreeRTOS
Developed in partnership with the world’s leading chip companies over a 12 year period, FreeRTOS is the market leading real time operating system (or RTOS), and the de-facto standard solution for microcontrollers and small microprocessors.

SafeRTOS
SAFERTOS is a safety certified Real Time Operating System (RTOS) for embedded processors. It delivers superior performance and pre-certified dependability, whilst utilizing minimal resources.

emWin
emWin is designed to provide an efficient, processor- and LCD controller-independent graphical user interface (GUI) for any application that operates with a graphical LCD. It is compatible with single-task and multitask environments, with a proprietary operating system or with any commercial RTOS. emWin is shipped as “C” source code. It may be adapted to any size physical and virtual display with any LCD controller and CPU.

Crank Software
Crank™ Software Inc. is an innovator in embedded user interface (UI) solutions. Compared to traditional electronic design automation tools, Crank’s products and services enable R&D teams to more quickly develop rich graphical displays—also called UIs or HMIs—for resource-constrained embedded devices. Applications include in-car graphical displays, animated GPS systems, and rich user interfaces on factory floors. Crank Software bridges the gap between UI design and embedded systems to deliver competitive advantage because streamlining the development lifecycle enables their customers to get products to market faster, with higher ROI and lower TCO, while delivering a superior customer experience. Crank Storyboard™ Designer enables user interface (UI) designers to easily prototype the look and feel of a product, and then deploy a production-ready interface directly to the embedded target. Designers maintain full control over the UI and user experience (UX) without having to perform a hand off to an embedded systems engineer for implementation.

J-Link Software Downloads
Various Various Download latest software and drivers from the Segger website.

Resources

J-Link Product Page
SEGGER J-Links are the most widely used line of debug probes available today. They’ve been proven for more than 10 years with over 250,000 units sold, including OEM versions and on-board solutions. This popularity stems from the unparalleled performance, extensive feature set, large number of supported CPUs, and compatibility with all popular development environments.

15FPS Video Demo
Demonstration of how uEZ GUI is able to provide fifteen frame per second video samples right on the device.

Support

Once you’ve picked up your µEZ GUI, FDI is with you every step of the way. We offer support and documentation on our forums.

µEZ Software

Sourceforge download link for µEZ Software
- Hello World emWin GUI Project Generator (Part of µEZ Source Files)
Slide Show Creation Guide for μEZ GUI
How to Create Videos for μEZ GUI
µEZ+ Program
µEZ+ Bootloader

Quick Start GUI Program

Customer Provides Menu Inputs
Photoshop, PowerPoint or even napkin drawings
Simple Menus and Functions usually less than 8 screens
1-2 week turnaround for $5,000 or less
Customer starts API level application development immediately

Expansion Boards

Do not forget to look at our expansion boards
Adds: Ethernet, USB Host, RS232/RS485, AC Power
