ΣYG-S7G2 Modular Development Kit – SYG-S7G2-MDK

Specifications

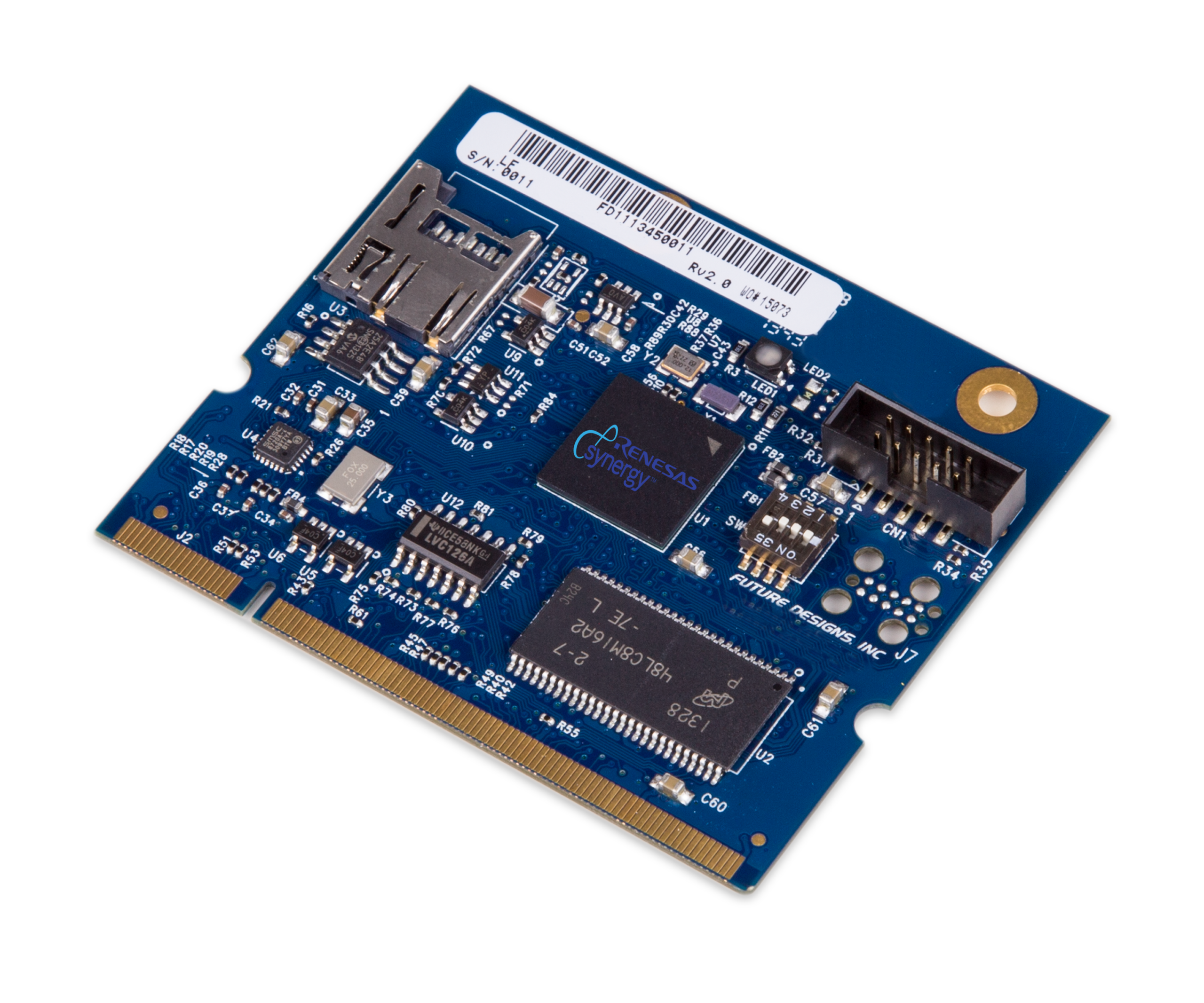

System on Module (SOM)

• Based on SODIMM form factor (Small Outline Dual Inline Memory Module)
• Renesas Synergy Software Platform
• Renesas Synergy S7G2 240 MHz microcontroller
  • 4MB of Internal flash
  • 640KB of Internal SRAM
• 16MB of External SDRAM
• 16MB of External QSPI Flash
• 10/100 Ethernet PHY
• Mini-JTAG connector
• Micro SD Memory Card Socket
• PCB Dimensions 67.6 x 57.5 mm

Generic Carrier Board for CPU and LCD Modules

• 200-pin SODIMM socket
• 10/100 Ethernet port
• 1 CAN port (Male DB9)
• 1 RS-232 port (Male DB9)
• External I²C interface
• 3-axis Digital Accelerometer & Temperature Sensor
• Real-time Clock with SuperCap backup
• Flexible Power Supply input can be wall supply or 5V USB
• TFT interface for LCD displays up to 1024×768 resolution, 18 bpp

Current Documentation – Rev 1.1

Renesas Synergy^TM software

Software Tools & Resources

Synergy Software Package (SSP)
The Synergy Software Package contains all software stack components, including the X-ware suite with ThreadX RTOS, the HAL peripheral drivers, and the Synergy Framework.

e² studio Integrated Solution Development Environment (ISDE)
e² studio ISDE is an essential component for Synergy Platform development. The ISDE contains the necessary debuggers and project management tools that you will need to create applications for Synergy Platform-based devices.

ThreadX Real-Time Operating System by Express Logic
ThreadX is Express Logic’s advanced Real-Time Operating System (RTOS) designed specifically for deeply embedded applications. ThreadX provides advanced scheduling facilities, message passing, interrupt management, and messaging services, as well as many others. ThreadX has many advanced features, including its picokernel™ architecture, preemption-threshold™ scheduling, event-chaining,™ and a rich set of system services. Combined with its superior ease-of-use, ThreadX is the ideal choice for the most demanding of embedded applications. ThreadX has been deployed in over over 2 billion electronic products in the areas of consumer devices, medical electronics, and industrial control equipment.

GUIX Studio™
GUIX Studio™ provides a complete WYSIWYG screen design environment which allows the user to drag-and-drop graphical elements used to build the UI screens. GUIX Studio automatically generates C code compatible with the GUIX™ library, ready to be compiled and run on the target. Developers can produce pre-rendered fonts for use within an application using the integrated GUIX Studio font generation tool. Fonts can be generated in monochrome or anti-aliased formats, and are optimized to save space on the target. Fonts can include any set of characters, including Unicode characters for multi-lingual applications.

TraceX®
TraceX® is Express Logic’s host-based analysis tool that provides developers with a graphical view of real-time system events and enables them to visualize and better understand the behavior of their real-time systems. With TraceX, developers can see clearly the occurrence of system events like interrupts and context switches that occur out of view of standard debugging tools. The ability to identify and study these events, and to pinpoint the timing of their occurrence in the context of the overall system’s operation enables developers to resolve programming problems by finding unexpected behavior and letting them investigate specific areas further.

Forums

Once you’ve picked up your device, FDI is with you every step of the way. We offer support and documentation on our forums.

Expansion Boards

The uEZGUI Expansion Boards also work with the Synergy Product line. (But the series resistors on the USB lines must be replaced with zero ohm resistors for complete compatibility.)

• µEZGUI-EXP-BRKOUT
• µEZGUI-EXP-DK
• µEZGUI-EXP1

Application notes using SSP 1.3.0 on the SYG-S7G2-43C-MDK

Application notes using SSP 1.3.0 on the SYG-S7G2-70C-MDK
