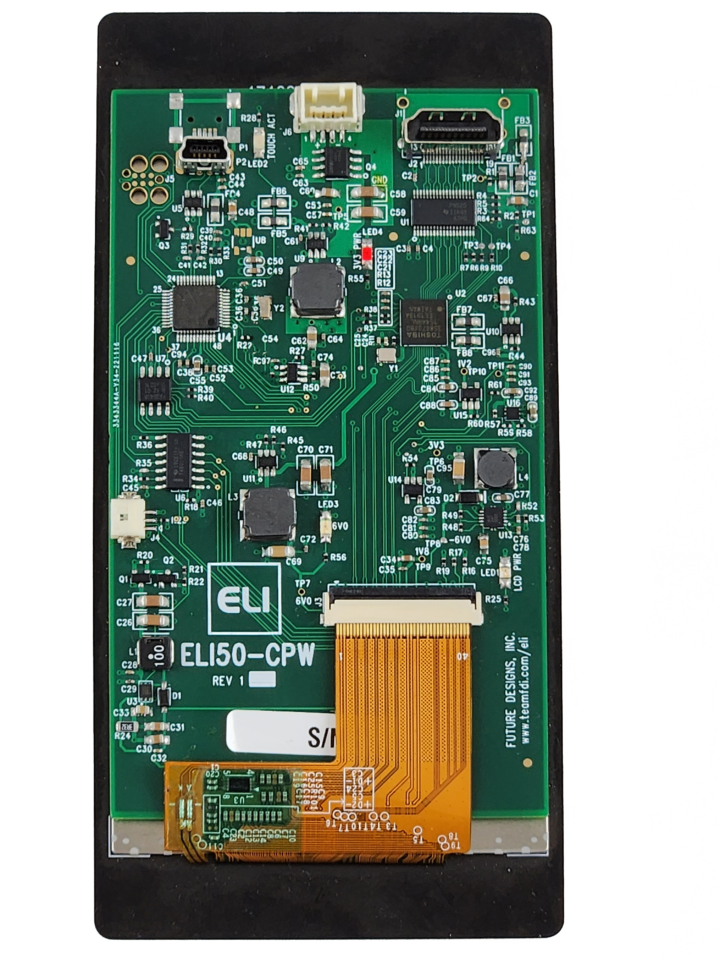

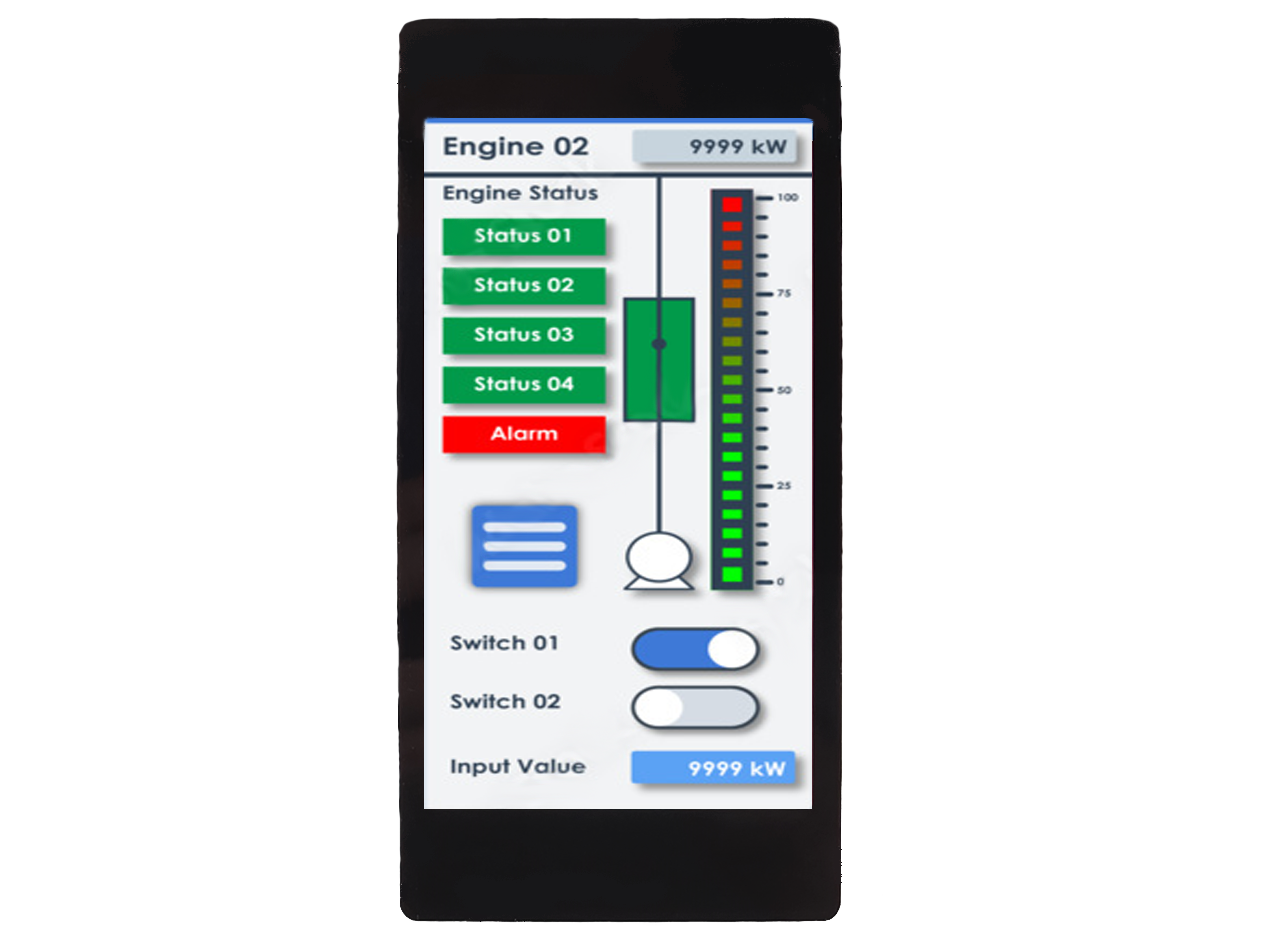

A photo of ELI50-CPW front

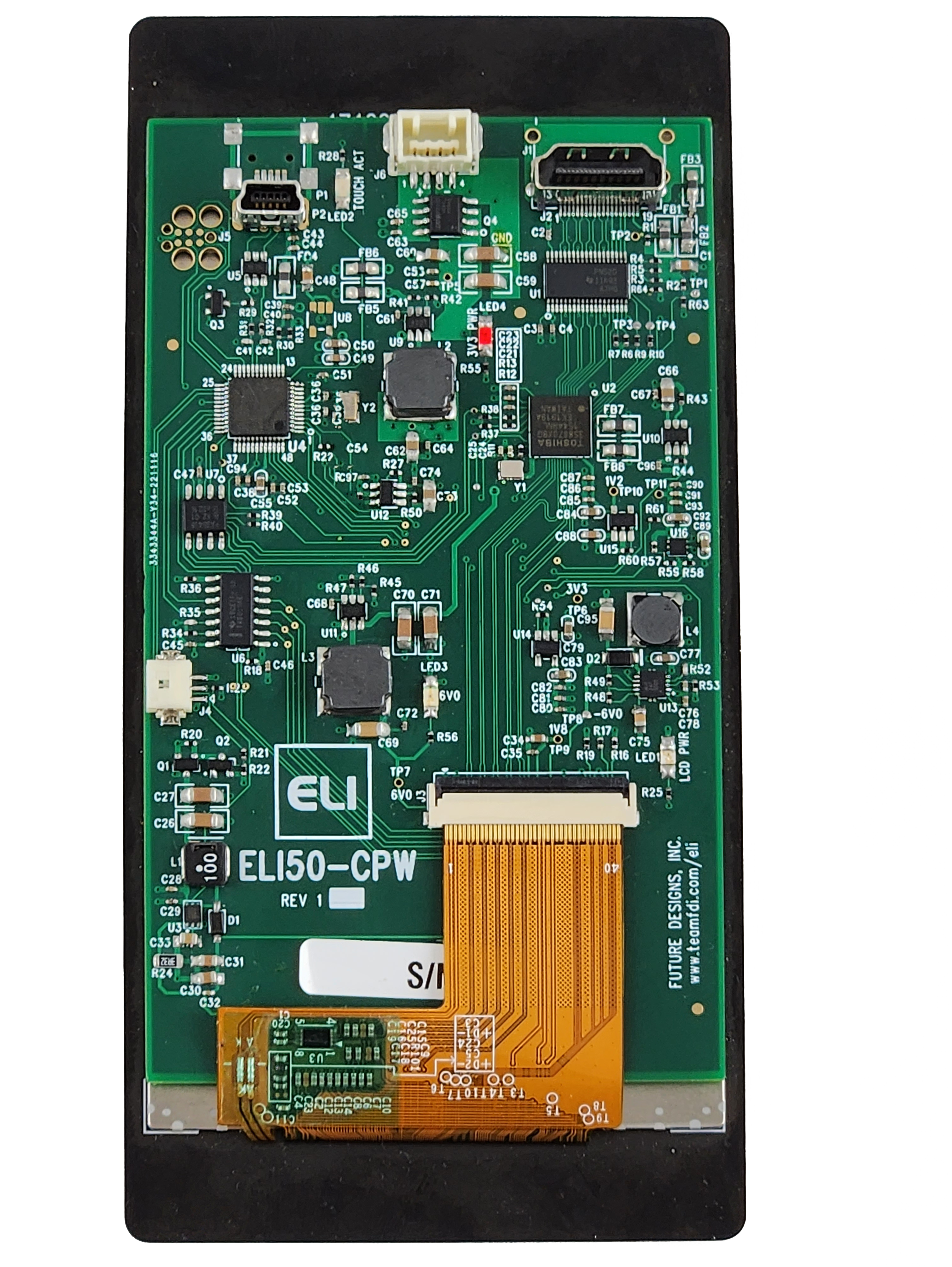

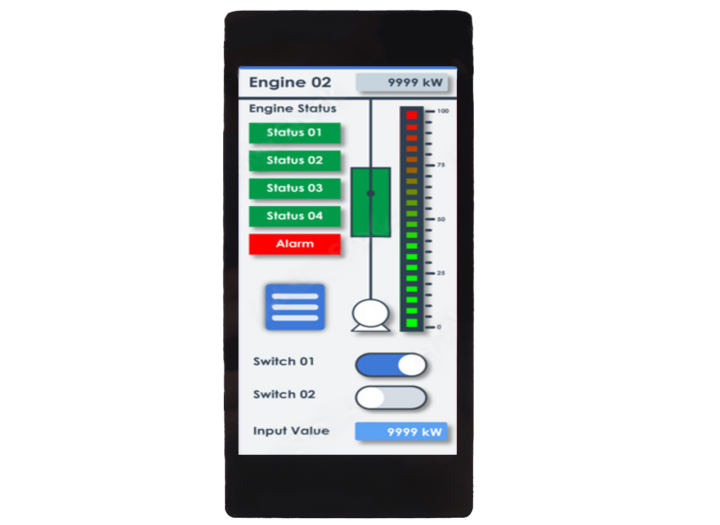

A photo of ELI50-CPW front

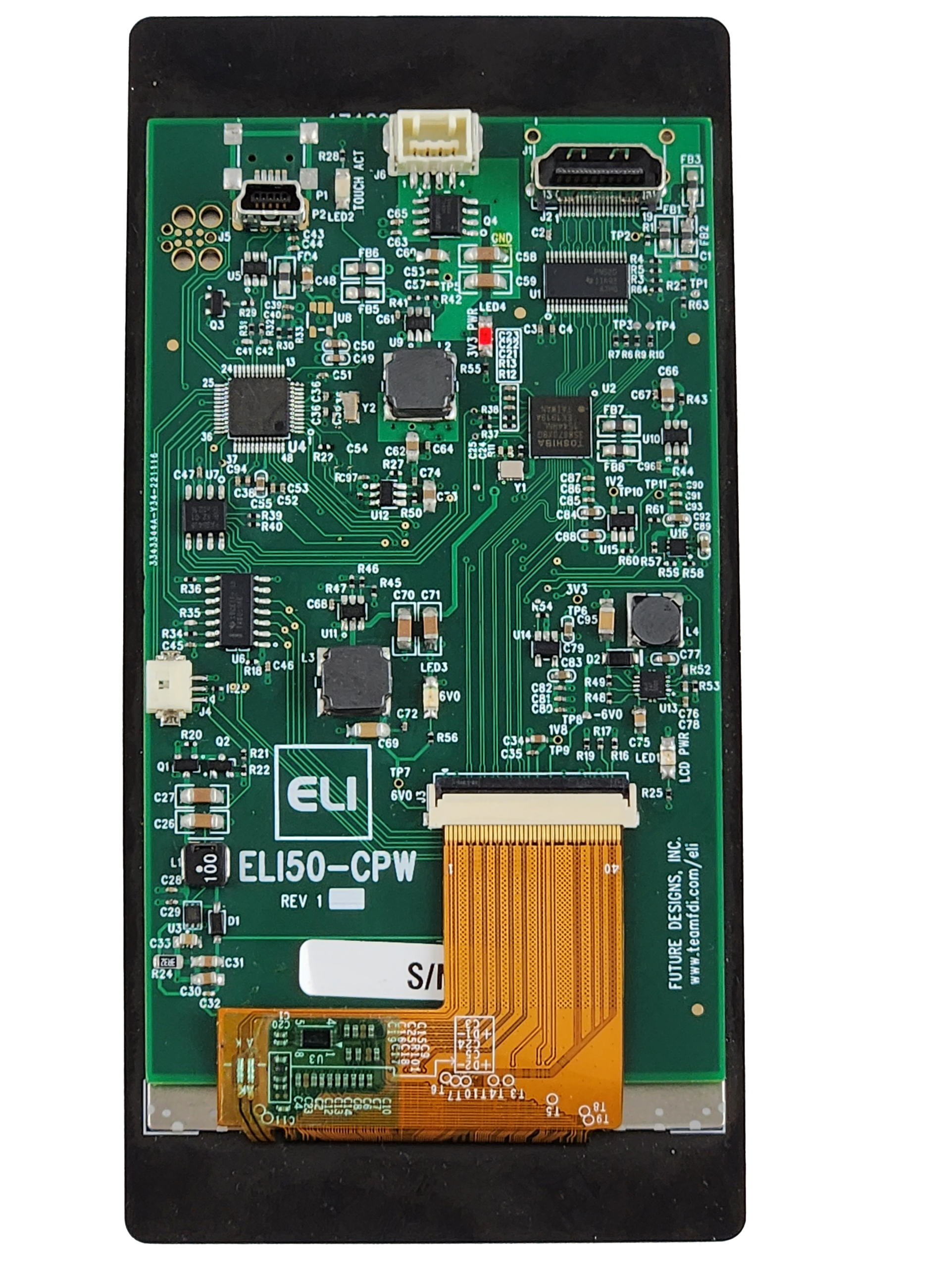

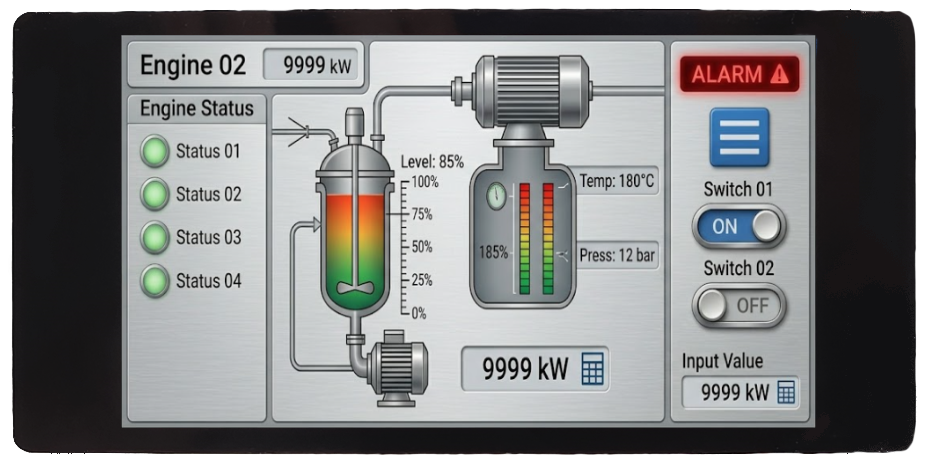

5.0″ PCAP Touchscreen LCD Module – ELI50-CPW

Part #: ELI50-CPW
For distribution pricing, click on the Purchase Info tab.
Status: Production
Production guaranteed: Until 2033
Warranty: 1 Year (Extended available)

  • Easy LCD Interface (ELI)
  • 5.0″ PCAP Screen LCD
  • 300 nits Brightness and 1000:1 Contrast Ratio (typical)
  • 720 by 1280 Standard High-Definition LCD
  • -20° to +70° C operating temperature range
  • Plug and Play interface to standard SBCs
  • HDMI Input with EDID Support
  • +7.5-17 Volt DC Input Power (±5% tolerance)

>> See the brochure

SKU: ELI50-CPW Categories: , , , ,

Overview

ELI logo

ELI offers users a family of simple plug and play display solutions for Single Board Computers (SBC) such as the popular Raspberry Pi or BeagleBone Black. ELI devices are also compatible with NXP i.MX6 and Samsung Artik single board computers. ELI only needs an HDMI video input, a 5VDC to 24VDC power supply, and USB interface for the touchscreen.

ELI takes the frustration out of embedding a touchscreen display into your product. Desktop monitors aren’t well suited for embedded products and bare glass LCD’s present significant design challenges and schedule delays to typical customers. ELI provides an off-the-shelf solution with no NRE or development costs, and full support from our team of US based engineers or any of our franchised distributors.

Quick Start Documentation

Quick Start Guide

Specifications

Screen size

5.0
Touchscreen Type

In-cell Projected Capacitive – PCAP
Display Technology

a-Si SFT LCD
Touchscreen Interface

USB Device
Brightness (nits typ)

300
Resolution

720 x 1280
(WXGA Portrait)
Contrast Ratio (typ)

1000:1
Aspect Ratio

Tall 9:16
Colors

16.7 M (24 bit)
Vertical Viewing Angle (U/D)

85/85°
Horizontal Viewing Angle (L/R)

85/85°
Surface Finish

1.1 mm anti-fingerprint treated glass
Hardness

6H
Touch Panel Force (gF max)

100
Active Area (in mm) (WxH)

62.10 x 110.40
Response Time (ms typ)

30
Backlight: (# LEDs)

12 LED
Backlight Life K (hrs min)

30
EDID for Auto Screen Sizing

Yes
Display Interface Input Mode

HDMI
USB (mA typ/max)

Device 25/50
Input Voltage (VDC + 5%)

7.5-17
Power Consumption (mA typ/max)

114/158 @12 V
Backlight Power Consumption (mW typ)

up to 61% of Total
Operating Temperature

-30° to 80° C
Storage Temperature

-30° to 80° C
Mounting

3M 300LSE tape
or other 3M tape
Plug & Play with Standard SBCs

Yes
Size

71.64(W) x 145.4(H) x 14.9 (D)
Weight (grams typ)

94
RoHS Compliant

Yes

Documentation

Current Documentation – Rev 4.1

File NameTypeFormatDate
ELI50-CPW Brochure.pdfBrochurepdf02/13/2023
ELI50-CPW Quick Start GuideQuick Start Guidepdf12/18/2023
ELI Software User's ManualUser's Manualpdf03/31/2021
ELI50-CPW User's ManualUser's Manualpdf12/18/2023
ELI Family Input Voltage Matrix
Reference Guidepdf12/18/2023
ELI Part Numbers GuideReference Guidepdf01/05/2016
Hirose DF13 CatalogReference Guidepdf10/01/2016
3D & EASM Model Files (By Request Only)Mechanical Modelszip12/18/2023
ELI Double Clicks not Recognized in Windows – Registry FixApplication Notepdf02/28/2017
Blanking Screen During BootApplication Notepdf06/28/2018
ELI Touchscreen Calibration in LinuxApplication Notepdf09/14/2018
ELI Touchscreen Calibration in Windows 7Application Notepdf05/17/2018
ELI Touchscreen Calibration in Windows 10Application Notepdf05/17/2018
ELI Application NotesFurther Helplink01/04/2021
ELI Power CablePower Cablepdf11/17/2023
Dual ELI Configuration with an HDMI-to-USB-C AdapterReference Guidepdf09/05/2024

Software

FDI Software

File NameTypeFormatDate
Raspberry Pi Disk ImageDisk Imageimg inside zip06/20/2022
ELI Software User's ManualUser's Manualpdf01/18/2021
ELI Backlight Control Software for Raspberry PiSoftwarezip02/16/2018
ELI Backlight Control Software for Renesas Synergy S7G2Softwarezip04/10/2018

Recommended 3rd Party Software

BeagleBone Black Debian Disk Image
This is the basic Debian image straight from the Beagleboard.org website. No additional configuration is required. However, you may need a program such as 7zip to decompress the download file, since it is in a format more common to Linux than Windows.

7-zip
This is a program that can uncompress many file formats. Necessary for the BeagleBone Black Debian Image.

Raspberry Pi OS
This is the location to the basic Raspberry Pi OS image straight from the Raspberry Pi creators themselves. Some configuration is required, but we’ll help you with that. The configuration steps can be found in Section 7 of our Raspberry Pi User’s Manual.

Python Games
Many of these games made in Python work very well with ELI’s touchscreen.

Support

Support

Once you’ve picked up your ELI, FDI is with you every step of the way. We offer support and documentation on our forums and support wiki.

EDID

Extended Display Identification Data, or EDID, is the data structure passed from a display screen to a device’s video source. Find out more about ELI and EDID here. .

Application Notes

Further assistance can be found in our application notes for the ELI family. https://www.teamfdi.com/eli#appnotes

Recommended Linux Packages Available Through apt-get

We recommend the following packages for your various entertainment and productivity needs:

  • MPlayer – This is a lightweight video player perfectly suited for your Raspberry Pi/Beaglebone Black needs. In the terminal type: sudo apt-get install mplayer
  • Libre Office – A productivity suite containing a word processor, spreadsheet manager, presentation creator, and more of the expected office programs. In the terminal type: sudo apt-get install libreoffice

Support From FDI:

FDI Forums
Design Services
Production Services

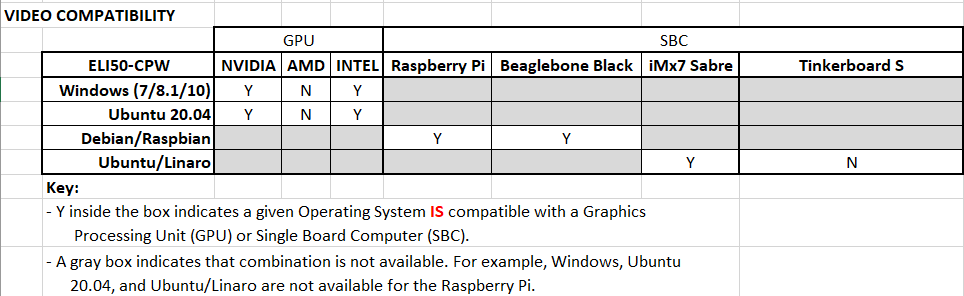

Compatibility
